PJ-325GM Pcb Panel Mount Stereo Headphone Jack Socket ≤ 30MΩ 5 Pin 1 / 8" 3.5mm

Product Categories
DELI ELECTRONICS TECHNOLOGY CO.,LTD
Contact Now

PJ-325GM Pcb Panel Mount Stereo Headphone Jack Socket ≤ 30MΩ 5 Pin 1 / 8" 3.5mm

Brand Name : ECHIP

Model Number : PJ-325GM

Place of Origin : CHINA

MOQ : 10 PCS

Price : Negotiation

Payment Terms : T/T, Western Union ， ESCROW

Supply Ability : 100000PCS

Delivery Time : STOCK

Packaging Details : BAG

Categories : 3.5mm Stereo Jack 3.5MM Headphones Socket

Contact Resistance : ≤30MΩ

Insulation Resistance : ≥100MΩ

Pressure : 500V,AC/Minute

Temperature Range : -30~+70℃

Rated Load : 30V DC 1.0A

Operating force : 5N~30N

Contact Now

PJ-325GM 5PIN 1/8" 3.5mm Stereo Jack 3.5MM Headphones Socket PCB Panel Mount

Product Name New design excellent performance electronic components 3.5mm 30V phone jacks
Model Number PJ-325GM
Contact Resistance ≤30MΩ
Insulation Resistance ≥100MΩ
Pressure 500V,AC/Minute
Temperature Range -30~+70℃
Rated Load 30V DC 1.0A
Operating force 5N~30N
Type PJ-325GM
Lifetime 5000 times

3.5mm phone jack /socket with switch

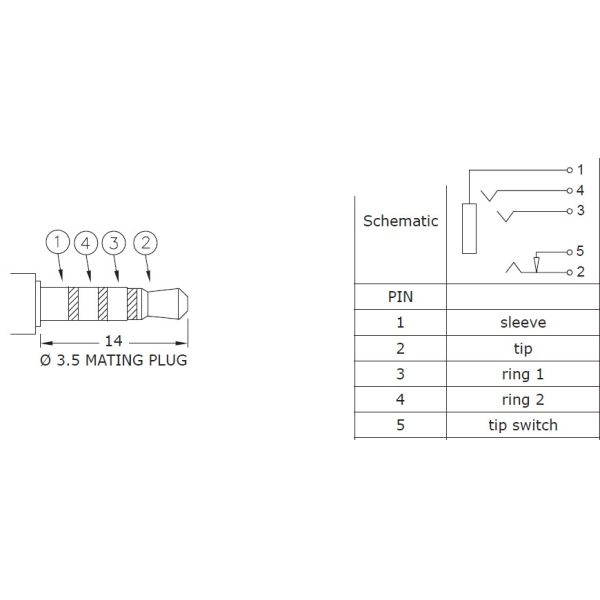

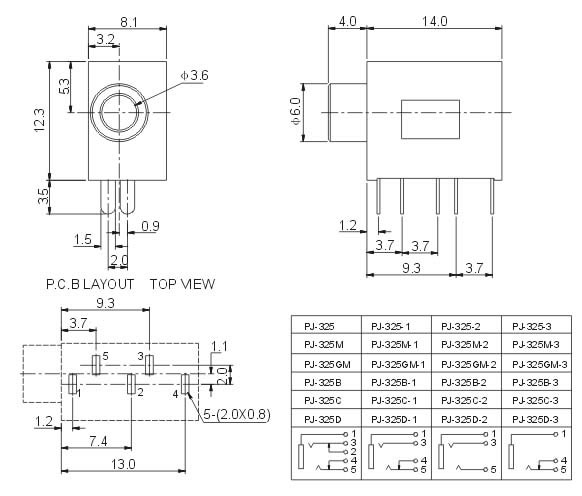

3.5 Mating plug drawing and 3.5 phone jack dr awing is as flows:

PJ-325GM Pcb Panel Mount Stereo Headphone Jack Socket ≤ 30MΩ 5 Pin 1 / 8" 3.5mmPJ-325GM Pcb Panel Mount Stereo Headphone Jack Socket ≤ 30MΩ 5 Pin 1 / 8" 3.5mm

PAYMENT AND SHIPMENT

    • Paypal,T/T,Westernunion,MoneyGram ,or other method.

  • Ship worldwide by sea, air, DHL, UPS,TNT, FEDEX and so on.

    ---We often ship item in 5 business days.

    FEEDBACK We greatly appreciate your positive feedback and will do the same.
    Please kindly contact us before you decide to leave any neutral or negative feedback .
    We will try our utmost to help you solve the problem. Your information for us will be protected strictly.

PJ-325GM Pcb Panel Mount Stereo Headphone Jack Socket ≤ 30MΩ 5 Pin 1 / 8" 3.5mmPJ-325GM Pcb Panel Mount Stereo Headphone Jack Socket ≤ 30MΩ 5 Pin 1 / 8" 3.5mm

Deli electronics tehcnology co ltd
www.icmemorychip.com

Email:sales3@deli-ic.com
Skype:hkdeli881
Website:www.deli-ic.com

TEL:86-755-82539981
